Machine features:
This machine is applicable to slit the narrow scope paper. It can automatically meter, set length, stop , winding is controlled by photoelectric eyes. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
Technical parameters：
|
Item No.
|
YD-320FQ
|
|
Slitting Speed
|
70m/min
|
|
Max. Web Width
|
320mm
|
|
Max. Unwinding Diameter
|
500mm
|
|
Max. Rewinding Diameter
|
480mm
|
|
Slitting Precision
|
±0.10
|
|
Total Power
|
0.75kw
|
|
Machine size
|
1100x900x1300mm
|
|
Machine Weight
|
About 400kg
|
*the voltage can customize according to your country standards.
Characteristics and Functions:
1. This machine is traditional and classic style .
2. It can automatically meter, set length, stop, winding, rewinding.
3. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
Application:
slitting for label,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Product Details:

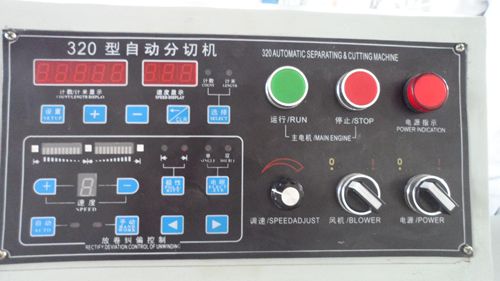

Control panel

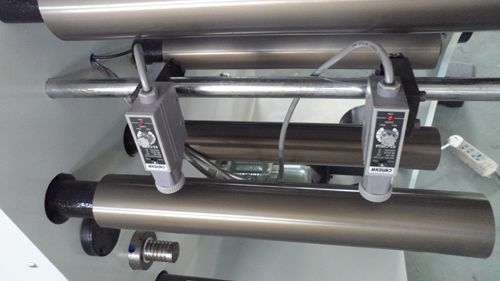

Edge Position Controller

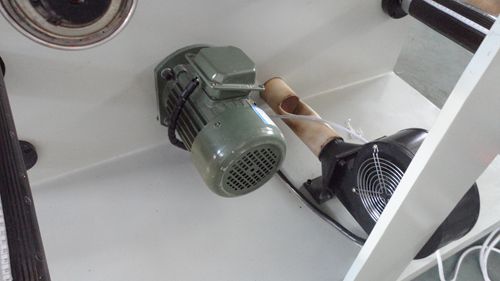

Motor, waste discharges device
|
